BL Downlight Protected LED-Leuchten EOL / BL Downlights

back
Article no.: 723009
BL DL Xtreme 228 3300LM/60D/840 DALI WH
BL DL Xtreme 228 3300LM/60D/840 DALI WH
BL DL Xtreme 228 3300LM/60D/840 DALI WH
BL DL Xtreme 228 3300LM/60D/840 DALI WH

BL DL Xtreme 228 3300LM/60D/840 DALI WH available

Datasheet

Top Features

  • Aluminium
    Material housing
  • IK06
    Impact strength
  • IP54
    Degree of protection (IP)
  • <22
    Unified Glare Ratio (UGR)
  • Excellent glare value of UGR
  • Aluminum reflector with mirror optics§
  • Protection class (room side) IP54
  • Plug&Play Connection

Einbaudownlight rund, inkl. Konverter DALI, 4000K, IP54, UGR

BL Downlight Protected

Article 723009

BL Downlight Protected

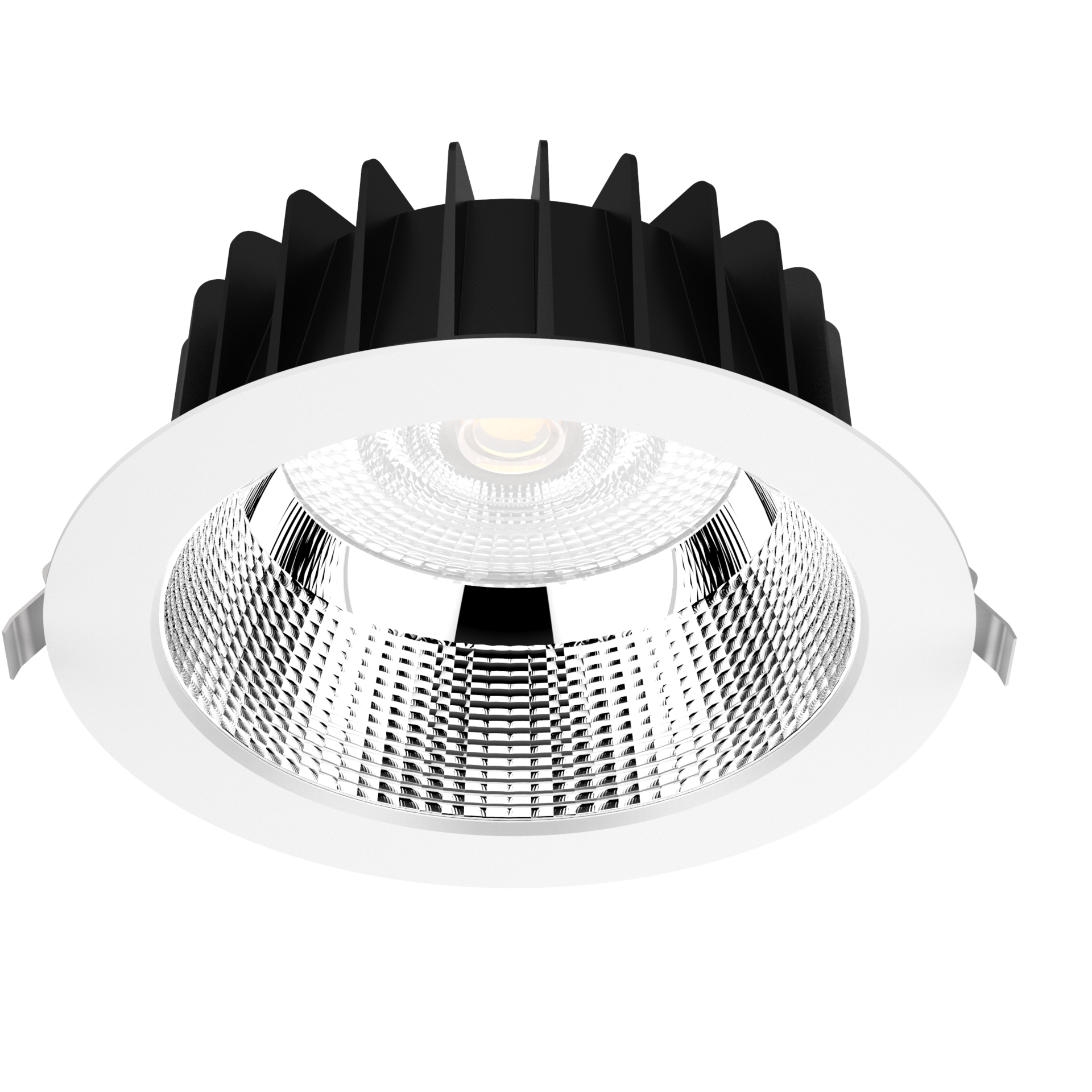

LED downlight with easy installation and commissioning of the LED converter thanks to pre-installed connection cable; highly efficient reflector made of Aluminium ; high-quality, White aluminum cooling housing; excellent thermal management; suitable for ambient temperatures of-20 ... +45 °C; protection class IP54 room-side; impact resistance IK06 ; protection class III ; service life (50000 h; ); Luminaire luminous flux 3300 lm; Connected load 17 W; Luminaire luminous efficacy 100 lm/W; Colour rendering >80 ; Light color White ; Colour temperature 4000 K; Beam angle 60°; Flicker-free (<10 ); Glare-free light distribution thanks to special reflector; UGR <22 ; Dimensions (L/W/H): 228.0 mm x 228.0 mm x 99 mm, Weight 1135 g

  • >80
  • IP54
  • 4000 K
Share: Facebook Google+ WhatsApp
Mechanical data
Material housing Aluminium
Colour housing White
Width 228.0 mm
Length 228.0 mm
Height/depth 99 mm
Outer diameter 228 mm
Mounting method Einbau
Reflector Silber
Lamp type LED nicht austauschbar
Type of fastening Retaining springs
Impact strength IK06
Degree of protection (IP) IP54
With lamp yes
Surface finishing matt
Suitable for wall mounting yes
Control gear included yes
Suitable for ceiling mounting yes
Unified Glare Ratio (UGR) <22
Electrical data
Protection class III
Voltage type AC
Power factor 0,95
Nominal voltage 220 - 240 V
Operating frequency 50 / 60 Hz
Type of dimming DALI
Overall efficiency 100 lm / W
Nennstrom 0,143 A
Max. system power 29 W
Dimming DALI yes
Flicker percent (< 165 Hz) <10
Light technical data
Beam angle 60°
Colour rendering index CRI >80
Light distribution symmetrisch
Rated luminous flux according to IEC 62722-2-1 3300 lm
Colour temperature 4000 K
Colour of light White
Energy efficiency class of teh built-in lamp G
Flicker-free yes
Temperature technical data
Impact strength IK06
Ambient temperature during operating - 20 ... + 45 °C
Rated life time L70/B10 at 25 °C 50000 h
Packaging information
EAN 9009453033796
Article no. 723009
Net weight 1135 g
Gross weight 1305 g
Net width 228.0 mm
Net height 99 mm
Net length 228 mm
State of origin CN
