BL Downlight Protected LED-Leuchten EOL / BL Downlights

back
Article no.: 723003

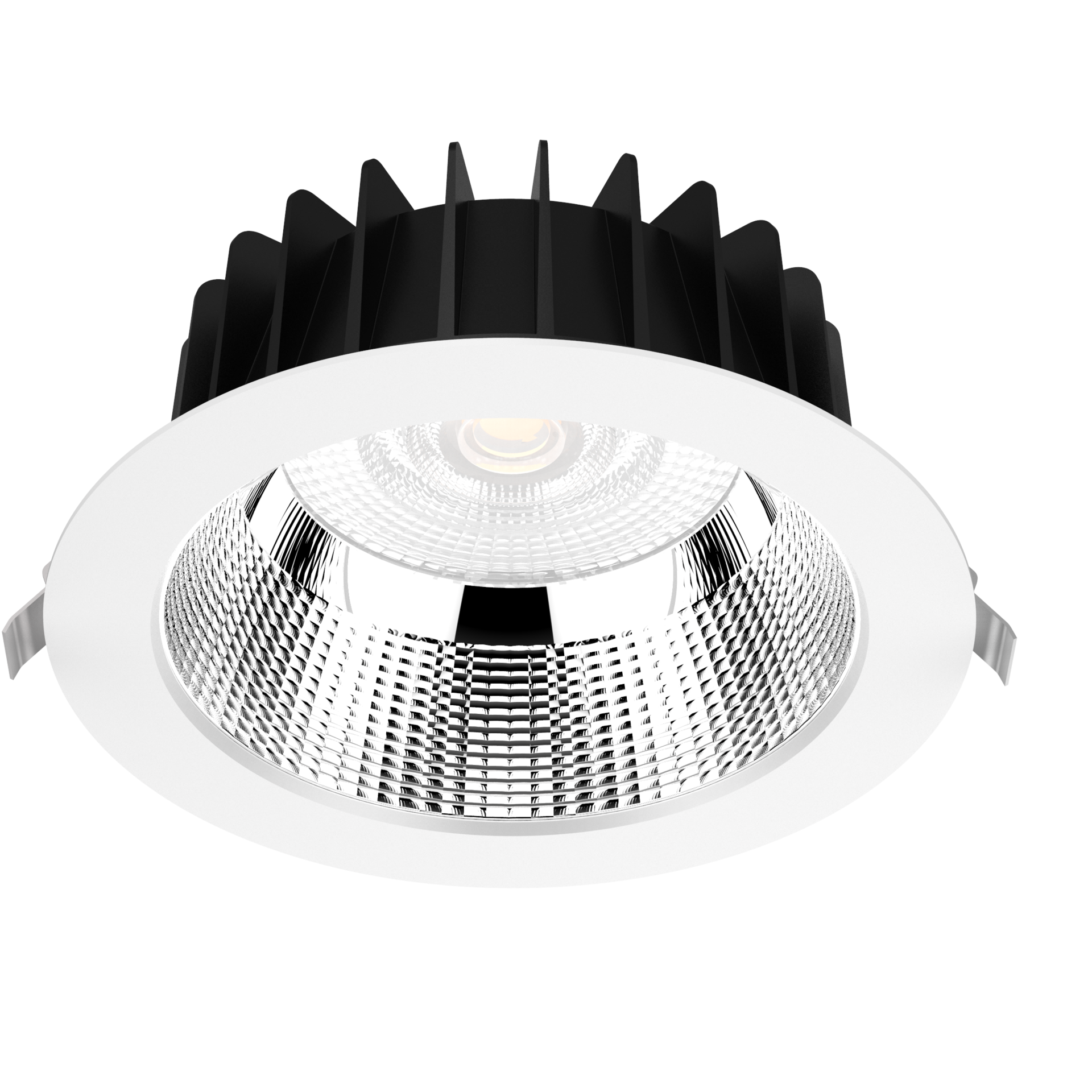

BL Downlight Protected recessed luminaire 145mm 2000lm 17W 60D 840 white IP54
BL Downlight Protected recessed luminaire 145mm 2000lm 17W 60D 840 white IP54
BL Downlight Protected recessed luminaire 145mm 2000lm 17W 60D 840 white IP54
BL Downlight Protected recessed luminaire 145mm 2000lm 17W 60D 840 white IP54

BL Downlight Protected recessed luminaire 145mm 2000lm 17W 60D 840 white IP54 available

Datasheet

Top Features

  • Aluminium
    Material housing
  • IK06
    Impact strength
  • IP54
    Degree of protection (IP)
  • <19
    Unified Glare Ratio (UGR)
  • Excellent glare value of UGR
  • Aluminum reflector with mirror optics§
  • Protection class (room side) IP54
  • Plug&Play Connection

LED recessed downlight round, 2000 lumen, 17W, 60° direct beam, CRI >80, 4,000 Kelvin, IP54, IK06, protection class III, non-dimmable, UGR

BL Downlight Protected

Article 723003

BL Downlight Protected

LED downlight with easy installation and commissioning of the LED converter thanks to pre-installed connection cable; highly efficient reflector made of Aluminium ; high-quality, White aluminum cooling housing; excellent thermal management; suitable for ambient temperatures of-20 ... +45 °C; protection class IP54 room-side; impact resistance IK06 ; protection class III ; service life (50000 h; ); Luminaire luminous flux 2000 lm; Connected load 17 W; Luminaire luminous efficacy 100 lm/W; Colour rendering >80 ; Light color White ; Colour temperature 4000 K; Beam angle 60°; Flicker-free (<5 ); Glare-free light distribution thanks to special reflector; UGR <19 ; Dimensions (L/W/H): 145.0 mm x 145.0 mm x 78 mm, Weight 475 g

  • >80
  • IP54
  • 4000 K
Share: Facebook Google+ WhatsApp
Mechanical data
Material housing Aluminium
Colour housing White
Width 145.0 mm
Length 145.0 mm
Height/depth 78 mm
Outer diameter 145 mm
Mounting method Einbau
Reflector Silber
Lamp type LED nicht austauschbar
Type of fastening Haltfedern
Impact strength IK06
Degree of protection (IP) IP54
With lamp yes
Surface finishing matt
Control gear included yes
Suitable for ceiling mounting yes
Unified Glare Ratio (UGR) <19
Electrical data
Protection class III
Voltage type AC
Power factor 0,95
Nominal voltage 220 - 240 V
Operating frequency 50 / 60 Hz
Overall efficiency 100 lm / W
Nennstrom 0,082 A
Max. system power 17 W
No dim function yes
Flicker percent (< 165 Hz) <5
Light technical data
Beam angle 60°
Colour rendering index CRI >80
Light distribution symmetrisch
Rated luminous flux according to IEC 62722-2-1 2000 lm
Colour temperature 4000 K
Colour of light White
Energy efficiency class of teh built-in lamp F
Flicker-free yes
Temperature technical data
Impact strength IK06
Ambient temperature during operating - 20 ... + 45 °C
Rated life time L70/B10 at 25 °C 50000 h
Packaging information
EAN 9009453015327
Article no. 723003
Net weight 475 g
Gross weight 575 g
Net width 145.0 mm
Net height 78 mm
Net length 145 mm
State of origin CN
